- Sturdy and Durable: The bridgeport drawbar is made of high-quality steel, using hot treatment, with high strength, high hardness, wear resistance, and long service life.
- Excellent Performance: The bridgeport drawbar has high concentricity, strong tensile strength, good rigidity, and can effectively resist bending and vibration during processing, thus reducing the error of the workpiece.
- Wide Compatibility: This bridgeport drawbar is able to match a wide range of R8 interface spindles and shanks, suitable for use with different sizes and types of milling cutters, increasing the flexibility and versatility of the equipment.
- Professional Assistant: This bridgeport drawbar can be used with R8 collet (not included) to enhance your working efficiency. The working height can be adjusted when equipped with a spacer ring to meet your needs.
- Easy to Operate: The simple, intuitive design allows for quick installation and removal, saving you adjustment time and making operation less difficult.
Details
Clear Threads: The clear thread pitch is 0.05 inches, making it less likely to come off.
Ergonomic Handle: It is comfortable to hold and easy for you to work.
Application
This bridgeport drawbar is suitable for most milling machines with R8 collets and widely serves in the industries of hardware accessories, mechanical parts, mold manufacturing, and automation equipment.
Specifications
Style: Modern
Color: Black
Material: Steel
Surface Treatment: Hot Treatment
Assembly Required: No
Inch Tooth Diameter: 7/16
Thread Pitch: 1.25mm/ 0.05 in
Hexagonal Head Size: 19mm/ 0.75 in
Overall Length: 60cm/ 23.6 in
Effective Length: 47cm/ 18.5 in
Spacer Ring Width: 0.8cm/ 0.31 in
Thread Length: 3.9cm/ 1.53 in
Gross Weight: 0.75kg/ 1.65 lbs
Net Weight: 0.7kg/ 1.54 lbs
Package Size: 4x61x4 cm/ 1.57x24.02x1.57 in
Package Included

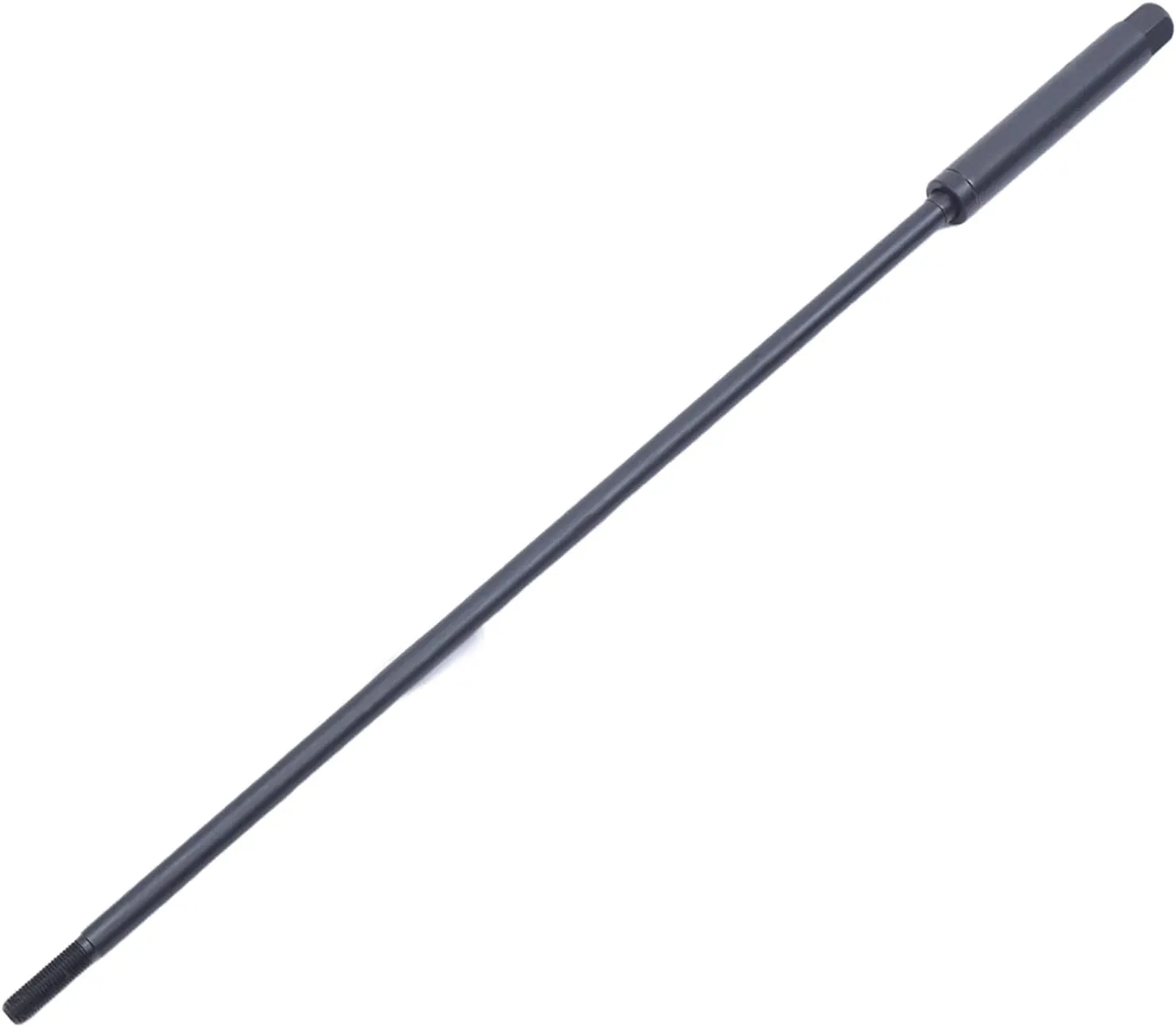

1x Milling Machine Draw Bar
Notes
1. Please note that if you want to obtain the "second life" after the end wears out, simply cut off at the "V" notch and remove the spacer.
2. Please note that this product does not include other accessories, this product needs to be used with R8 collets (not included).
3. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
