- [Ultra-Fast Speed] This PCIE network card has dual RJ-45 ports with 10/100/1000Mbps let you connect to network cable and upgrade your ethernet speed to gigabit easily. PCI Express* 2.1 (2.5 GT/s), fits for PCI-E X1, X2, X4, X8, X16 Slots. Compatible extensions to PCI power management and ACPI.
- [Stable Performance] This Pcie ethernet card was equipped with original Intel 82576 controller chip built for high-performance computing. Support 9.5K Bytes (Jumbo Frames), VPD, VMDq, PC-SIG SR-IOV, DMTF NC-SI passthrough, SNMP, RMON, iSCSI boot, PXE, VLAN, Wake-on-LAN. Packet recognition and wake-up for LAN on motherboard applications without software configuration.
- [Comprehensive System Support] Supports Microsoft Windows Server 2003, Enterprise, Datacenter (32- and 64-bit) Microsoft Windows 2000 Red Hat Linux 2.4x or later (32- and 64-bit) FreeBSD 4.x or later Novell Netware 5.x, 6.x Sun Solaris x86, OS 8 and later SCO Open Server 5, Open UNIX 8.
- [Low-Profile and Full-Height Brackets] Low profile and standard profile bracket inside works with both standard and mini size computer case/server. You can download driver from Intel website or scan the QR code printed in the back side of the intel NIC card.
- [What You Get] 1G PCI-E X1 network adapter x1, Low-profile Bracket x1, 59 inches ethernet cable with RJ45 Crystal head x 1. 30 Days Free-returned, 1 Year Free Warranty and Lifetime Technology Support.
PCIe Network Card adds two 10/100/1000 Mbps compatible RJ45 Ethernet ports to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.
Compliant with IEEE 802.3/u/ab standards, and with support for 9.5K Jumbo Frames, VLAN tagging, this Gigabit NIC Adapter offers effective network performance.
Features:
Uses x1 PCI Express interface on MCH device.
Peak bandwidth 2 GB/s in each direction per PCI-Express lane.
IEEE 802.3x compliant flow control support with software controllable pause times and threshold values.
Supports carrier extension and packet bursting (half duplex).
Advanced Power Management - Low power link up "Smart Power Down - Link disconnect.
Support for limited auto MDIO register init - limited number of registers.
SERDES Signal Detect and support of non-AN partner.
Auto crossover for MDI.
Smart Power Down.
Transmit and receive IP, TCP and UDP checksum off-loading capabilities.
IEEE 802.1q VLAN support with VLAN tag insertion, stripping and packet filtering for up to 4096 VLAN tags.
Double Vlan.
9.5 kByte jumbo frame support.
VMDq.
Direct Cache Access (DCA).
Both ports support Wake on LAN (WoL)
SNMP and RMON statistic counters.
SDG 3.0, WfM 3.0, and PC2001 compliance.
Two complete Gigabit Ethernet connections in a single device.
Four activity and link indication outputs (per port) that directly drive LEDs.

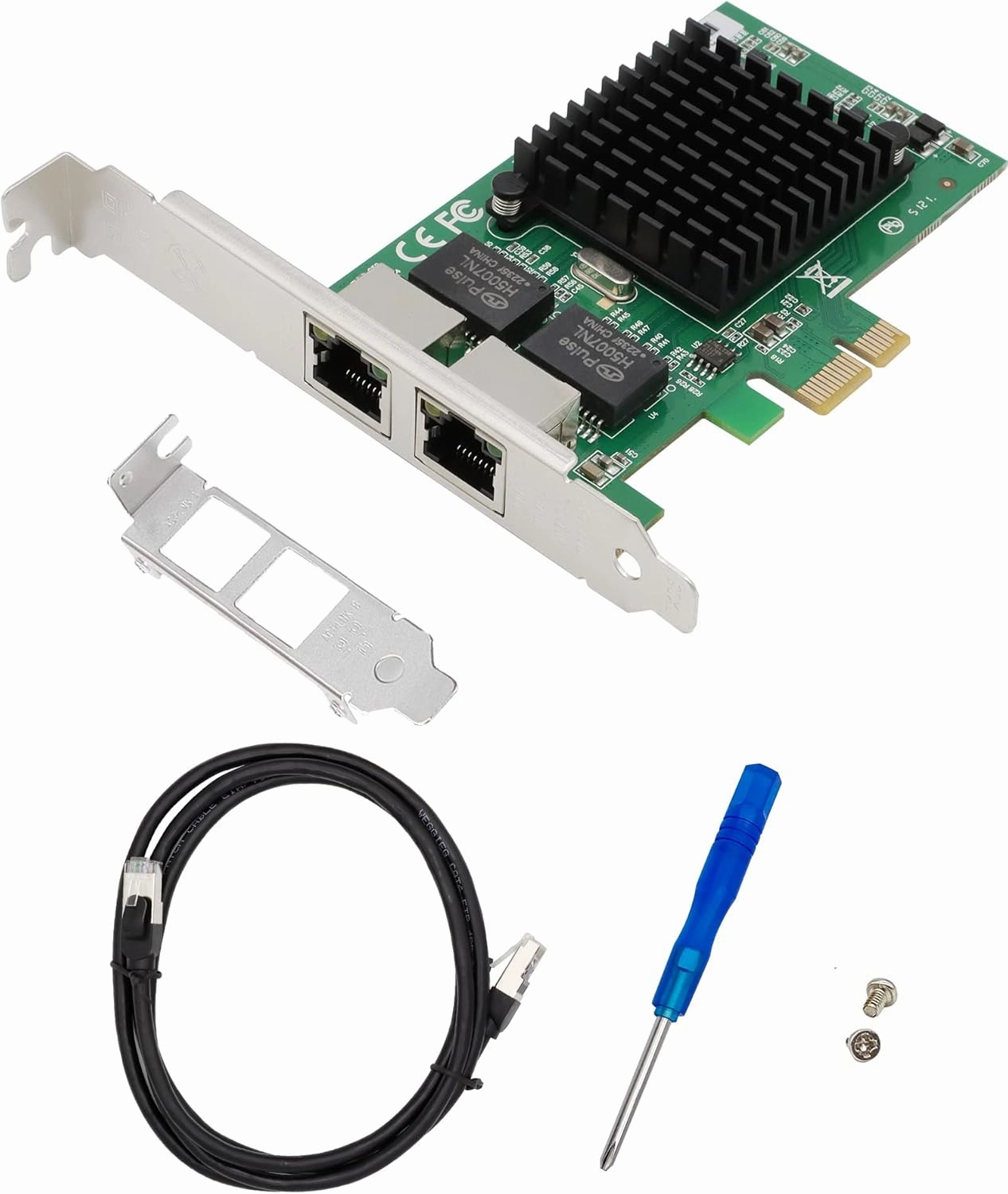

Package Include:
1 x PCIE X1 1G LAN Card
1 x Low profile Bracket
1 x 59 inches ethernet cable with RJ45 head
