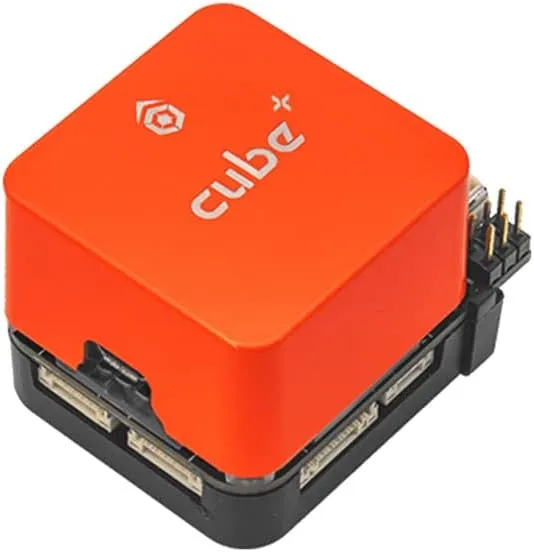

The Hex Cube Orange Mini Set is an advanced flight controller solution combining the Cube Orange autopilot module and a compact Mini Carrier Board. The Cube Orange, developed by Hex Technology, is equipped with a high-performance STM32H743 ARM Cortex-M7 processor and supports ArduPilot firmware for seamless integration into drones, UAVs, and robotic systems. The Mini Carrier Board offers a space-saving design, connecting the Cube Orange to various peripherals such as GPS, telemetry, power modules, and ESCs. This combination provides a versatile, powerful, and reliable autopilot system for small to medium-sized drones and robotic applications, ensuring precise control and stable performance.VIDEO: Diatone Mamba H743 MK4 FC & 128K ESC UnboxingFeaturesSupports multiple modes such as LoiterSupports ground control stationsSupports Mission PlannerAUTO (with Waypoints)Built-in flight loggingAltitude HoldGuide modeSpecificationsSensors details: IMU1 (Isolated) ICM42688, IMU2(Isolated) ICM20948 or ICM42688, IMU3 (Fixed) ICM20649 or ICM45686, MS5611 x 2 (Baro)Supported vehicle type: Fixed-wing plane, Multicopters, Helicopter, VTOL-plane, Rover/boat/submarineChassis Material: CNC Aluminum Alloy (cube) ABS Molding(Carrier Board)Operating temperature: -10~ 55° IMU with temperature controlSupported firmware: Ardupilot, PX4, and Hionos DO-178CMain Processor: STM32H757 Dual Core M7 M4Supported RC signals: PPM/SBUS/DSMCarrier Board Size: 47.5×40.5×20.2mmPower redundancy: Triple redundancyCube Size: 38.4×38.4×22mmSensors: Triple IMU SystemCoprocessor: STM32F100GPS/Serial interfaces: 4CAN FD interface: 1Debug interface: 212C interface: 1PWM I/Os: 14Weight: 53gIMPORTANT Links (Insert links such as manuals, firmware, etc)Includes1x Hex Cube Orange Mini Set 1x Power Brick Mini Cable1x Micro USB Cable1x Power Brick Mini1x GPS1 GH Cable 1x Buzzer Cable2x CAN Cable1x I2C Board2x I2C Cable
