- Supply voltage: 3.3-10V. Receiver sensitivity: -92DBM. Frequency range: 2.408-2.475GHZ. 2.4G mode: AFHDS 2A.
- Channels: 4CH. Output signal: PWM. Band width: 135. Distance: 400 meters. Working current: 20MA.
- Mini compatible receiver is compatible for FS-I6, FS-I6X, FS-I6S, FS-TM8, FS-TM10, FS-I10 and other AFHDS 2A protocol transmitter.
- Dimensions: 11 * 25MM. Weight: 0.9 grams. FS2A 4CH AFHDS 2A Mini Compatible Receiver is small and light to carry.
- If you have any questions, please feel free to contact us, and we will give you a sactisfied answer within 24 hours.
Mini compatible receiver is compatible for FS-I6, FS-I6X, FS-I6S, FS-TM8, FS-TM10, FS-I10 and other AFHDS 2A protocol transmitter.
Features:
Channels: 4CH
Output signal: PWM
Frequency range: 2.408-2.475GHZ
Band width: 135
Receiver sensitivity: -92DBM
2.4G mode: AFHDS 2A
Supply voltage: 3.3-10V
Distance: 400 meters
Working current: 20MA
Dimensions: 11 * 25MM
Weight: 0.9 grams
How to use:
1. Press and hold the key on the receiver and connect the power to the receiver. The blue light on the receiver flashing, get into bindind mode.
2. Set the transmitter into bind mode (confirmed AFHDS 2A protocol). After getting into bind mode, the receiver light changes from flashing to slow flash.
3. Transmitter get out of bind mode, then the receiver blue light becomes bright. Indicates that the signal receive is successful.
Failsafe settings:
The mini compatible receiver can normally receive the transmitter signal, push the rocker to the the failsafe set, long press the receiver bind button, the blue light flashes quickly several times and then always bright , failsafe settings is successful.
Pacakge Included:

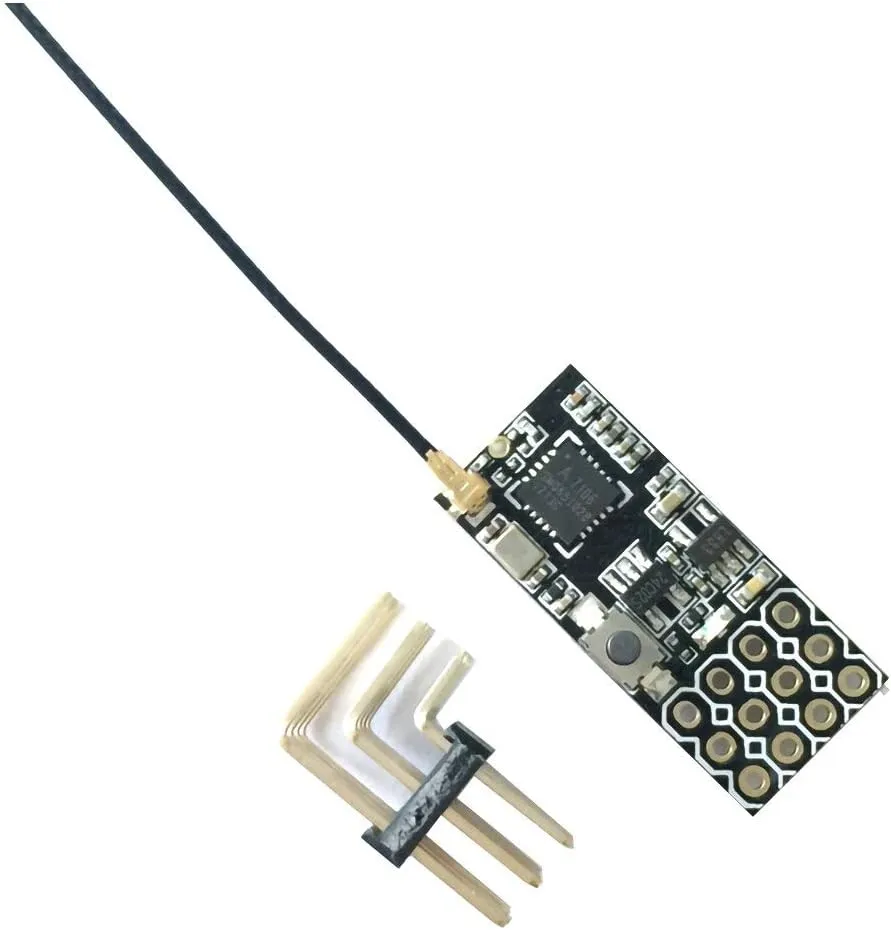

1X FS2A 4CH AFHDS 2A Mini Compatible Receiver
