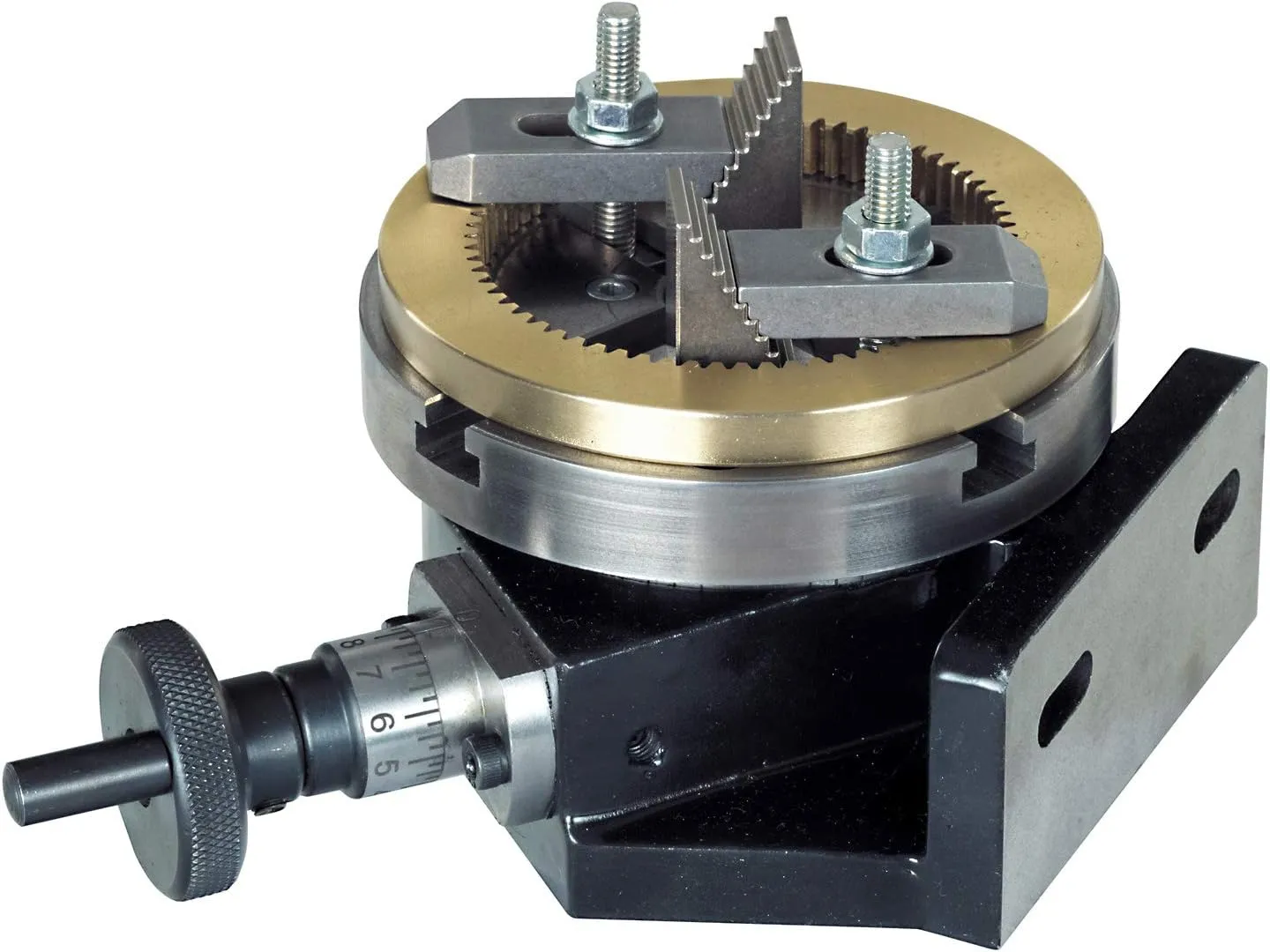

- Dividing attachment for accurate machining of circular work pieces
- Used to manufacture sprockets, gears, ratchets, cams, etc.
- For fixation on PROXXON milling machine FF 230
- Worm drive for divisions through 360 degrees. Feed adjustment by handwheel with graduated, zero-adjustable dial (1 revolution = 10 degrees)
- Scope of delivery: Dividing attachment, face plate diameter 100 mm and step clamps
For fixation on compound table KT 150 and milling machines FF 230 and FF 500/BL. Worm drive for divisions through 360°. Feed adjustment by handwheel with graduated, zero-adjustable dial (1 revolution = 10°). Unit may be fixed horizontally or vertically. For compound tables with distances between T-slots of 45 - 60mm. The flange of the dividing attachment is the same size as that of the main spindle of the PD 250/E lathe, thus 3 jaw chuck (NO 24 034) and 4 jaw chuck (NO 24 036) may be mounted.
Incl. faceplate diameter 100mm and step clamp set of steel: Two each step blocks and clamps. With matching t-nuts, threaded rods and nuts. Packed in a wooden box.
Note:
The work piece depicted here is not included in the scope of delivery.
