- 1.Strong compatibility, whether it is the program or mechanical structure for standard building blocks, as far as possible compatible processing;
- 2.It is made of environment-friendly POM plastic, which is small, light and not easy to be damaged;
- 3.Suitable for fixed wing, helicopter KT, gliding, intelligent car, small robot manipulator and other models;
- 4.Classic 9g Servo, control is simple, 3Pin 2.54mm DuPont cable Header;
- 5.Supply Voltage:DC4.8V-6V, Operating speed(at no load): 4.8V 0.12±0.01sec/60°6V 0.1±0.01sec/60°
Overview:
The product can control the rotation speed and direction of the output shaft. It is made of environment-friendly POM plastic, which is small, light and not easy to be damaged.
The internal integrated reduction gear can increase the torque and is suitable for programmable fixed wing,
helicopter KT, glide, intelligent car, small robot manipulator and other models.
Specifications:
Supply Voltage: DC4.8V / DC6V
Operating speed (at no load): 4.8V 0.12±0.01sec/60° 6V 0.1±0.01sec/60°
Running current (at no load) : 4.8V 200±20mA 6V 220±20mA
Stall torque (at locked): 4.8V 1.5±0.01kg-cm 6V 1.8±0.1kg-cm
Stall current (at locked): 4.8V 700±30mA 6V 900±30mA
Idle current (at stopped): 4±1mA
Weight: 9g
Storage Temperature Range：-20℃～60℃
Operating Temperature Range：-10℃～50℃
Control system：Change the pulse width
Amplifier type：Controller
Operating travel：90±5°(in 1000→2000μsec)
Left&Right travelling：≤3°
Centering deviation：≤1°
Neutral position：1500μsec
Dead band width：≤5μsec
Rotating direction：Counter Clockwise (1500→500μsec)
Pulse width range：800→2200μsec
Maximum travel：About 145°(in 800→2200μsec)
Connect Wire Definitions：Red lead -VCC, Brown lead -GND,Yellow lead -PWM
Package contents:

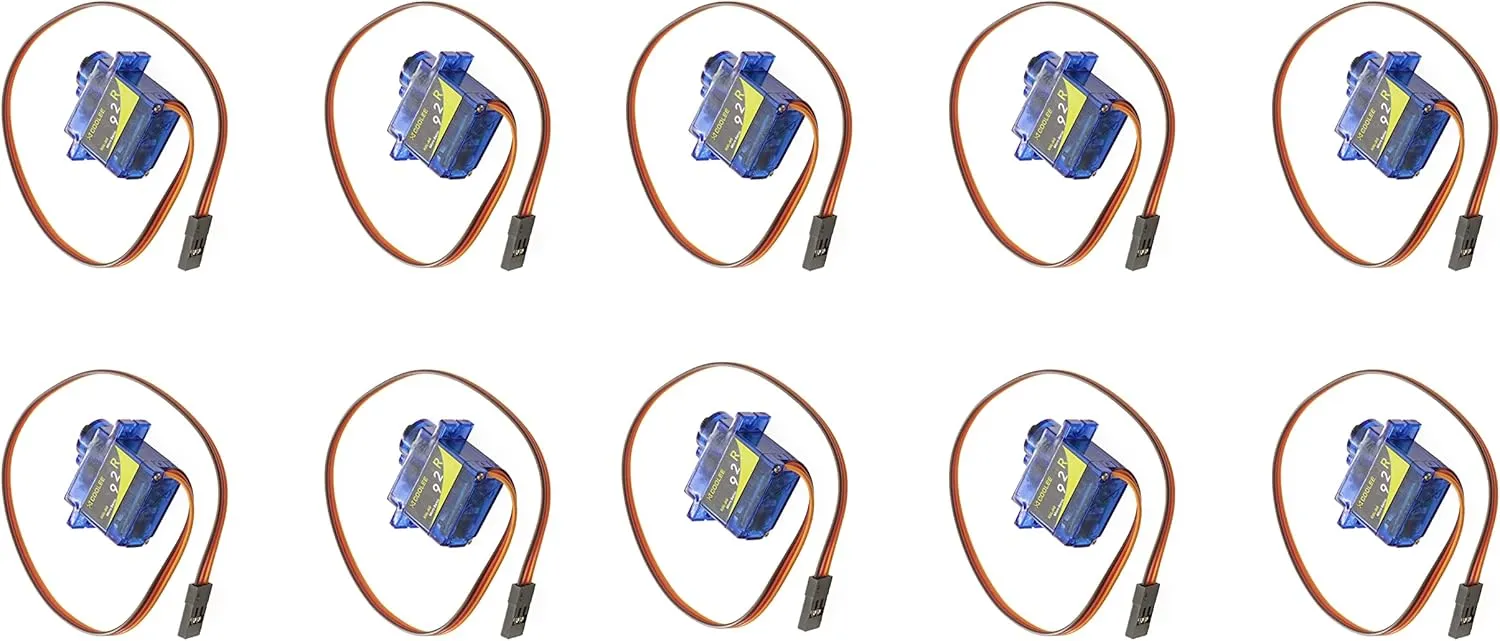

1.SG-92 Micro Servo motor×10
