- S500 is a entry-level and practical multi-rotor air frame kit for F450 upgrade quadcopter, which are mainly made of durable PCB board and hard plastic materials
- Compatible with Gopro Hero 3 2 Axis brushless gimbal or 808 gimbal for FPV
- Integrated PCB Wiring makes it easy to install, solder your XT60 or T connectors directly to the bottom plate
- Carbon rods impregnated into the arms, Sturdy construction and easy to assemble.
- Specially designed angled arms,increase flight stability while minimizing power loss, Cost-effective choice for entry-level aerial video shooting
The S500 is a entry-level and practical multi-rotor air frame kit for F450 upgrade quadcopter, which are mainly made of durable PCB board and hard plastic materials, and can work well with Gopro Hero 3 2 Axis brushless gimbal or 808 gimbal for FPV (the total weight of gimbal and camera should be less than 400g for best performance). It comes with a large mounting board at the front and rear for mounting cameras or other accessories. No extra mounting brackets are needed. Colored arms for orientation to keep you flying in the right direction.
Description:
Wheelbase: 500mm
35μm copper PCB strikes a balance between payload and performance
Material: durable hard PCB board and plastic
Weight: 416g
work well with Gopro Hero 3 2 Axis brushless gimbal for FPV aerial photography
Recommended configuration:(not included)
Without gimbal or FPV equipments:
2212 2216 motors
20A ESC
10-11 inch propellers
2200mah-5000mah 3s/4s battery
With gimbal or FPV equipments:
2218 3506 3508 motors
20A ESC
11-12 inch propellers
3s/4s battery, more than 4000mah.

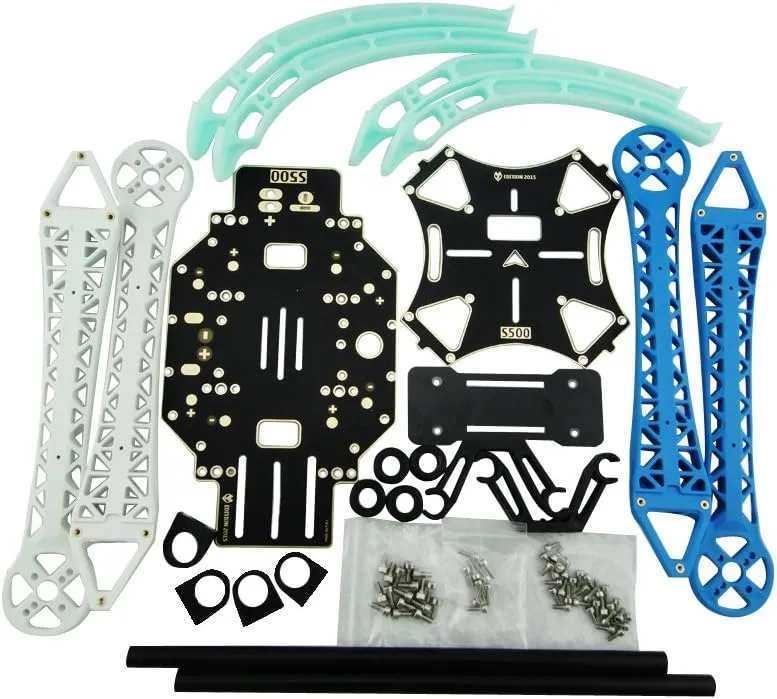

Package included:
4 x Arms
1 x Top Board
1 x Bottom Board
1 x PCB Parallel Board
4 x High Landing Gears
2 x Special Pipes
2 x Pipe Supports
4 x Set Screws
4 x 2.5-p0.45*5 Screws
8 x 2.5*8 Screws
16 x 3*7 Screws
24 x 2.5*6 Screws
